Infineon Technologies REF-DAB11KIZSICSYS Converter Board
Infineon Technologies REF-DAB11KIZSICSYS Converter Board is a DC-DC stage with a wide range output using two inductors and two capacitors (CLLC) resonant network with a bi-directional capability. The REF-DAB11KIZSICSYS utilizes the highly efficient bi-directional power flow capability and soft-switching characteristics to make the ideal building block to speed up the fast prototyping of any EV and ESS charger project.
The CoolSiC™ MOSFETs like the featured IMZ120R030M1H driven by 1EDC20I12AH are the perfect choice to combine cost-effective power density with the highest reliability.
Features
- 11kW at full output voltage range
- Bi-directional power flow capability
- High peak efficiency >= 97.2%
- 4.1kW/l high power density
- Synchronous rectification
- 1200V and 1700V CoolSiC™ MOSFETs
Applications
- Chargers from 30kW to 150kW
- Chargers from 50kW to 350kW
- Energy storage systems
- Fast EV charging
- Power conversion systems
Associated Products
Infineon Technologies CoolSiC™ 1200V SiC Trench MOSFETs
Optimized to deliver the lowest losses in the application and the highest reliability in operation.
Infineon Technologies CoolSiC™ 1700V SiC Trench MOSFETs
Features a revolutionary Silicon Carbide material and is optimized for fly-back topologies.
Infineon Technologies EiceDRIVER™ Enhanced Isolated Gate Driver ICs
Offer protection features such as DESAT, Miller clamp, soft-off for MOSFETs, IGBTs, and SiC MOSFETs.
Infineon Technologies TLI4971 XENSIV™ magnetiska strömsensorer
Strömsensor med hög precision för dubbelriktade AC- och DC-mätningar.
Infineon Technologies Quasi Resonant CoolSET™ Power ICs
Optimized for off-line switch power supplies in cascode configurations.
Infineon Technologies OptiMOS™ 5 Power MOSFET-enheter
Konstruerad för att uppfylla kraven på förbättrad systemeffekt och sänkt systemkostnad.
Infineon Technologies XMC™4000 Series 32-Bit ARM® Cortex®-M4 MCUs
Combines a leading-edge peripheral set with an industry-standard ARM® Cortex®-M4 core.
Infineon Technologies TLE925x High Speed CAN Transceivers
High-speed CAN transceivers used inside HS CAN networks for automotive and industrial applications.
Infineon Technologies SLS32AIA010MH/S/K/L OPTIGA™ Trust M
High-end security solution that provides a trust anchor for connecting IoT devices to the cloud.
Infineon Technologies Serial FRAM Nonvolatile Memory Devices
Fast write speed, high endurance, and low power consumption.
Infineon Technologies IFX25001 Low Dropout Voltage Regulators
Protected against overload, short circuit and overtemperature conditions.
Overview

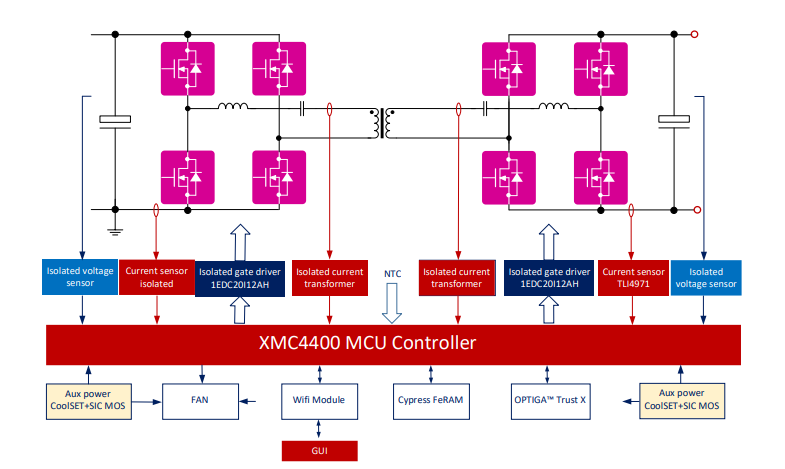

Block Diagram
