Vision Components IMX290 MIPI® Camera Module
Vision Components IMX290 MIPI® Camera Module offers a SONY® Starvis™ CMOS sensor with a 1920 x 1080 pixel and 2.1MP resolution. The ultra-compact board supports the MIPI CSI-2 specification and image sensor.
The Vision Components IMX290 MIPI Camera Module is ideal for multi-camera applications, including mobile and distributed applications. The Camera Module Sensor Board delivers a highly versatile component for embedded vision solutions.
Features
- Monochrome, SONY® Starvis™ 1/2.8" CMOS sensor
- 1920 x 1080 pixel, 2.1MP
- 120fps, rolling shutter
Applications
- Autonomous driving
- UAVs
- Smart city
- Medical technology
- Laboratory automation
Associated Board
Vision Components MIPI® Repeater Board
Offers a cable extension and additional interfaces available at the same time.
Associated Accessories
Vision Components MIPI® Accessories
FPC cables of different pin sizes and lengths with lens holders for S and C mount.
Additional Resources
Videos

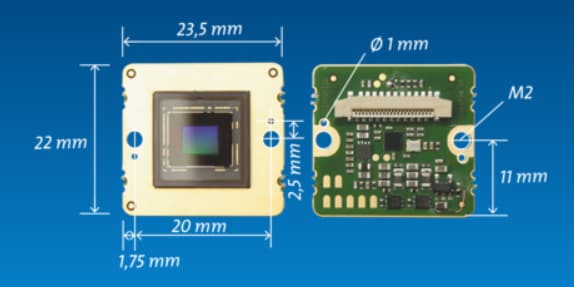

Dimensions

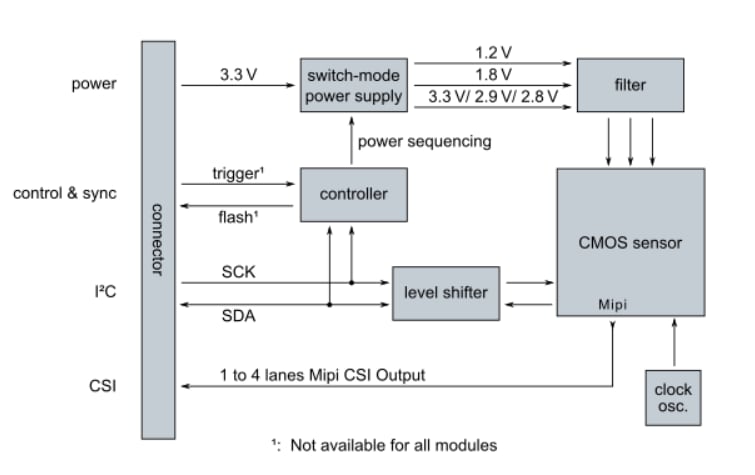

MIPI Sensor Module Circuit
