Texas Instruments TCAN1463EVM Transceiver Evaluation Module
Texas Instruments TCAN1463EVM Transceiver Evaluation Module (EVM) comes with TCAN1463DRQ1 installed and is used to evaluate transceiver operation in a signal-improved capable network. It is configurable for use with the Texas Instruments TCAN1043HG-Q1, TCAN1043G-Q1, TCAN1043H-Q1, TCAN1043A-Q1, and the TCAN1043-Q1 14-pin CAN transceivers by replacing the transceiver and setting jumpers on the evaluation module.
Features
- Configurable SiC network
- I/O voltage range supports 3.3V and 5V MCUs
- Includes ESD2CAN24-Q1 to provide 30kV ESD protection
- Meets the requirements of ISO11898-2
- Characterized for -40°C to +125°C

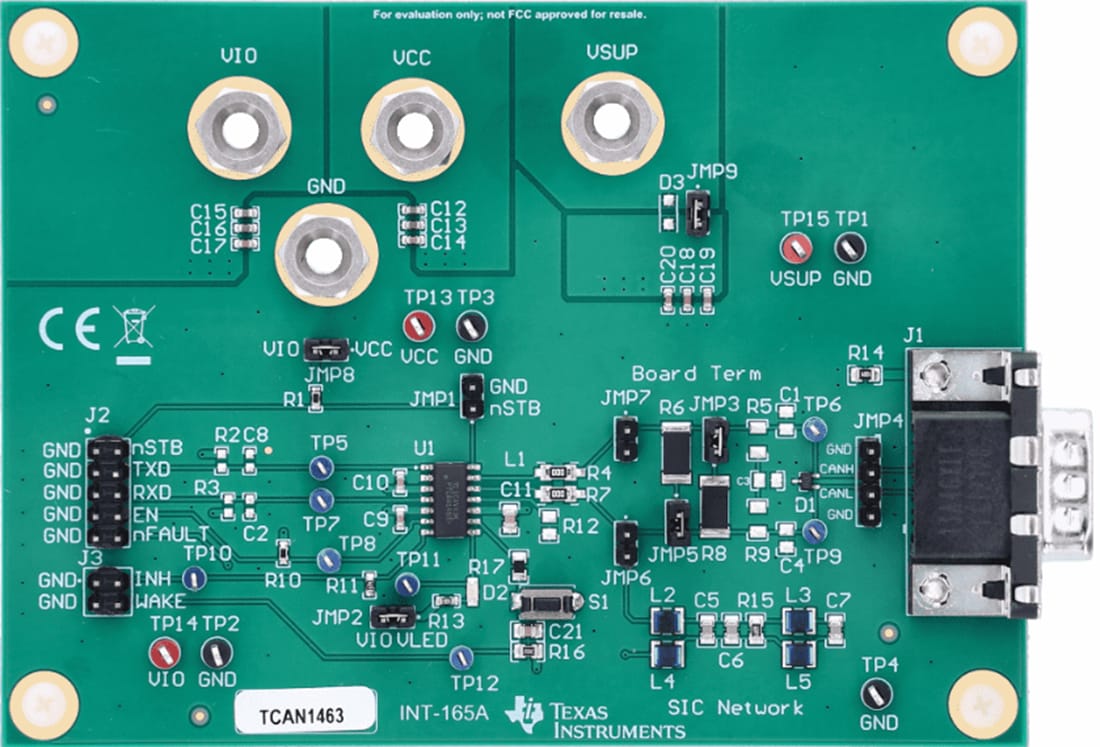

Board Layout
Related Products
Texas Instruments TCAN1463-Q1 High-Speed CAN FD Transceiver
Supports classical CAN and CAN FD (flexible data rate) data rates up to 8Megabits per second (Mbps).
Texas Instruments ESD2CANxx24/ESD2CANxx24-Q1 ESD Protection Diodes
Diodes are bidirectional and created for Controller Area Network (CAN) interface protection.
Texas Instruments TCAN1043xx-Q1 felskyddad CAN-transponder
Uppfyller de fysiska skiktkraven i specifikationen enligt ISO 11898–2 (2016) Höghastighetskommunikation enligt CAN.
Publicerad: 2022-09-30
| Uppdaterad: 2023-02-01
