Texas Instruments LP5890EVM Evaluation Module
Texas Instruments LP5890EVM Evaluation Module is engineered to evaluate the characteristics, operation, and usage of the LP5890 matrix LED display driver. The LP5890 is a highly integrated, common cathode matrix LED display driver with 48 constant current sources and 16 scanning FETs. The TI LP5890EVM works with a host controller, the MSP430F5529 LaunchPad™.
Features
- 48 current source channels from 0.2mA to 20mA
- 16 scan line switches with 190mΩ RDS(ON)
- Ultra-low power consumption
- High-speed and low EMI continuous clock series interface (CCSI)
Applications
- LED digital signage
- Keyboard and gaming accessories
- Major and smart home appliances
- Smart speaker, wired and wireless speaker
- Audio mixer, DJ equipment, and broadcast
- Access equipment, switches, and servers
Associated Products
Texas Instruments MSP430 utvärderingssats för USB LaunchPad
Lättanvänd utvärderingsmodul som är baserad på mikrokontrollern MSP430F5529.
Associated Drivers
Texas Instruments LP5890 48x16 LED Matrix Drivers
Support separated power supplies for the red, green, and blue LEDs by the common cathode structure.

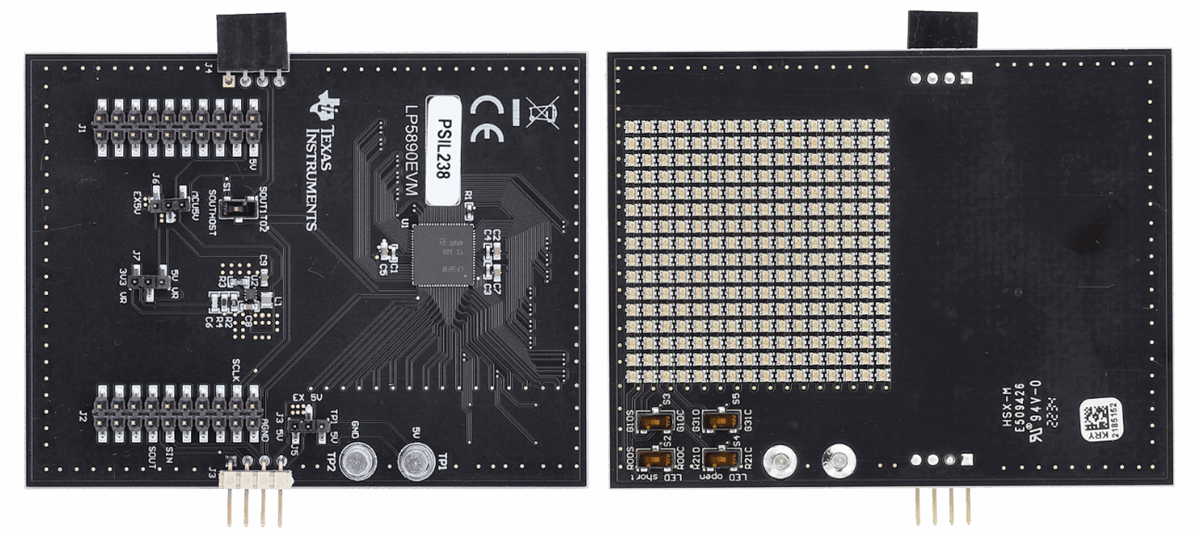

PCB Layout
