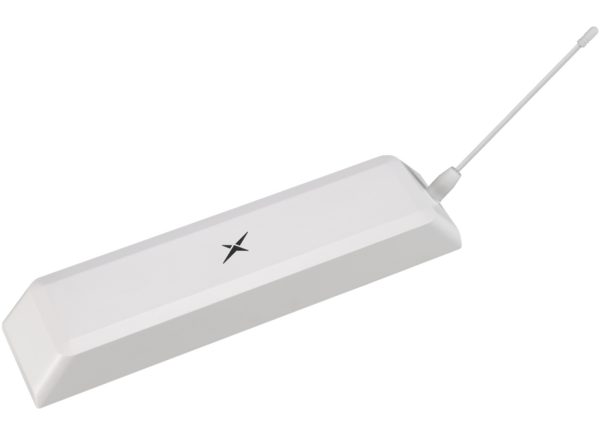

Taoglas Raptor MAX Combination Antennas
Taoglas Raptor MAX Combination Antennas are designed to enhance the connectivity of vehicles and offer up to 16-in-1 connections. These antennas are configurable in any combination of multiband GNSS L1/L5, up to eight 5G/4G antennas, up to six Wi-FI® antennas, and LMR/Tetra. Each of the cellular antennas covers global 5G/4G bands from 600MHz to 6000MHz with great efficiency across all bands, while the Wi-Fi antennas are designed for Wi-Fi 6e/7 coverage on bands 2.4GHz, 5.8GHz, and 7.125GHz. The embedded multi-band active GNSS antenna covers both the L1 and L5 bands, enabling greater positional accuracy than from a single GNSS. Additionally, the interchangeable whip allows the addition of frequency bands for specific requirements in the LMR or TETRA ranges. Taoglas Raptor MAX Combination Antennas feature a fully IP67-rated waterproof enclosure ideal for any environment or weather condition.
Features
- 12-in-1, 15-in-1, and 16-in-1 permanent antennas
- 8x LTE and 5G/4G MIMO 617MHz to 6000MHz
- 6x Wi-Fi MIMO 2.4GHz/5.8GHz/7.125GHz
- 1x GPS-GLONASS antenna (MAX1016.W.001)
- 1x GNSS L1/L5 dual-band antenna
- 1x LMR/TETRA interchangeable whip
- Low-profile design and IP67-rated enclosure
- 330mm x 75.5mm x 45.2mm dimensions
- RoHS and REACH compliant
Specifications
- 330mm x 75.5mm x 45.2mm dimensions
- IP67-rated enclosure
- 1.8V to 5.5V power input range
- 10mA ±3 power consumption
- 2W maximum input power rating
- 50Ω impedance rating
- -40°C to +85°C operating temperature range
Applications
- Fleet management
- Asset tracking
- Public safety systems
- Infrastructure
- Industrial IoTs
- First responder vehicles
- Military and defense

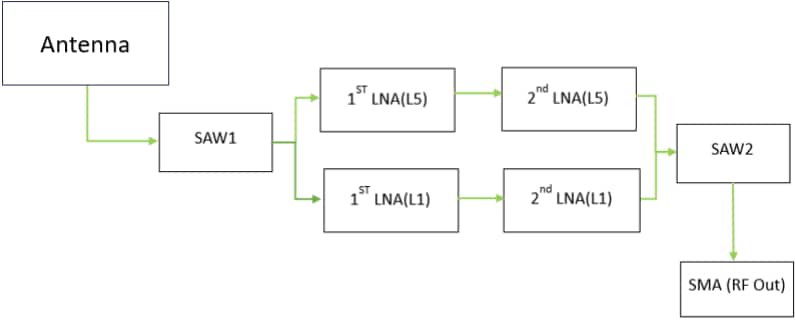

Block Diagram

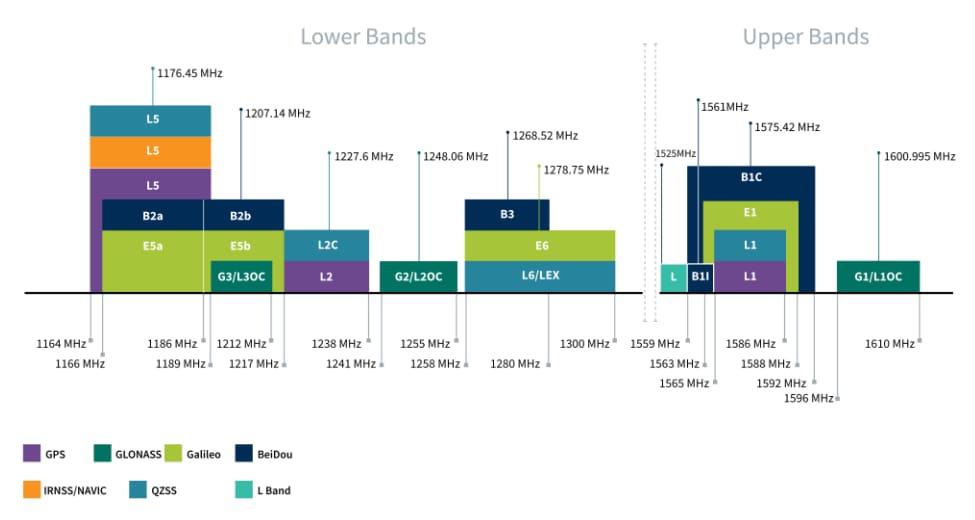

GNSS Bands & Constellations
