Stackpole Electronics AEC-Q200 High-Reliability RNCA Thin Film Resistors
Stackpole Electronics AEC-Q200 High-Reliability RNCA Thin Film Resistors provide excellent long-term reliability for precision applications. These resistors feature a low tolerance range of 0.05% to 1%, a low TCR range of 10ppm/°C to 50ppm/°C, and ≥10GΩ insulation resistance. The thin film resistors also feature unique inner terminations engineered to deter sulfur contamination. These resistors pass the industry standard ANSI/EIA977 sulfur test with minimal resistance shift at 105°C. The thin film resistors are ideal for precision medical applications, precision automotive electronics, non-established reliability military and aerospace, and instrumentation and metering.
Features
- AEC-Q200 qualified
- High reliability
- Improved long-term stability
- Environment robustness
- 0.05% to 1% tolerance range
- 10ppm/°C to 50ppm/°C low TCR range
- Inner terminations engineered to deter sulfur contamination
- Lead free and halogen free
- RoHS and REACH compliant
Applications
- Precision medical
- Precision automotive electronics
- Non-established reliability military and aerospace
- Instrumentation and metering
Videos

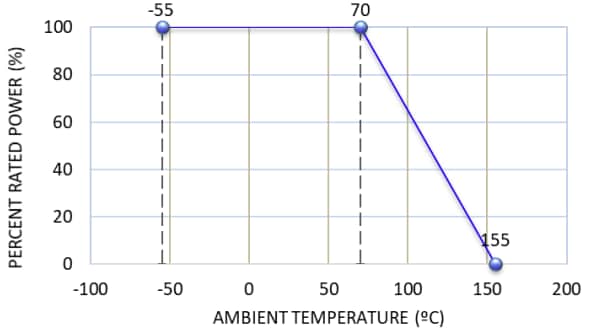

Power Derating Curve
