Renesas Electronics Smart Grid Fault Indicator Unit
Renesas Electronics Smart Grid Fault Indicator Unit is an example of a low-power design system for system implementation. The fault indicator unit uses Renesas' high-performance RA2 MCU series. The unit includes a 16-bit SAR ADC, 24-bit sigma-delta ADC, COMP, system control, touch control, and super low power.
In the data collection unit, the RL78/G13 is a standard function MCU with low power and an abundant lineup for general purpose applications. BLUETOOTH® is used for communication between the two boards. Combined with Renesas' high-performance power and analog solutions, this system can minimize idle quiescent current. This helps save power consumption during standby states.
Features
- Low quiescent power MCU solutions for optimized efficiency
- High performance analog devices for accurate system monitoring

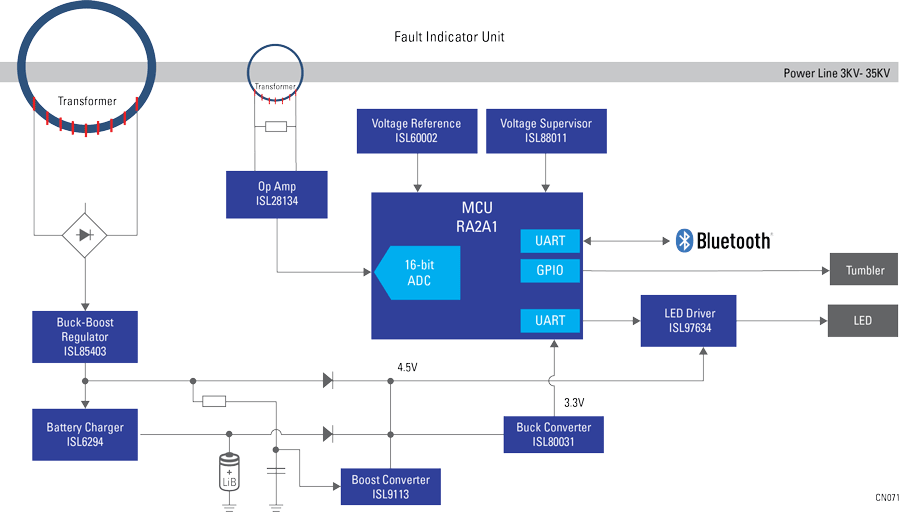

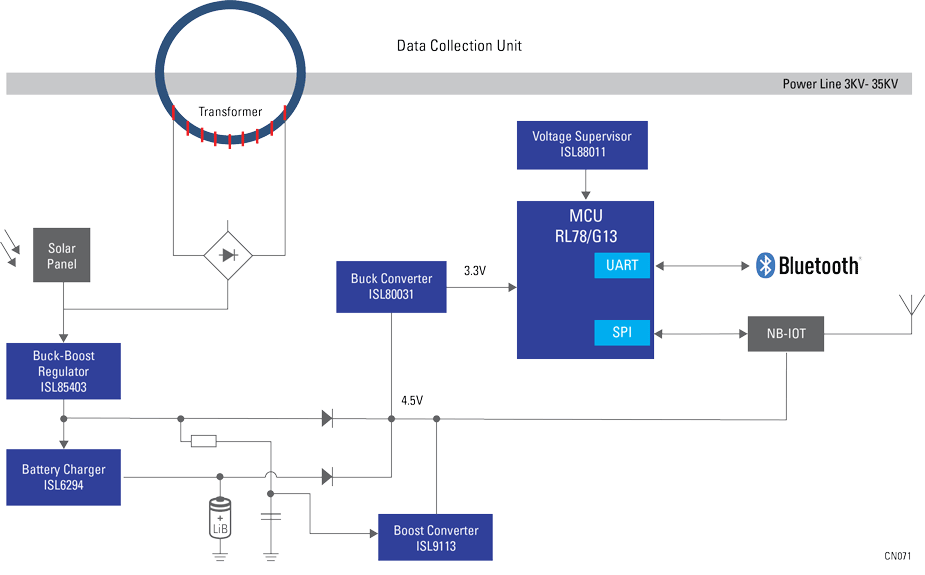

Block Diagrams
Microcontrollers
Renesas Electronics RA2A1 32-Bit Microcontroller Group
Features a 48MHz Arm® Cortex®-M23 core and integrated 24-bit Sigma Delta ADC.
Renesas Electronics RL78/G13 Series MCUs
True low-power platform and high-function general-purpose MCUs that are offered in abundant lineup.
Op Amp
Renesas Electronics ISL28134 Rail-to-Rail Op Amp
Single, chopper-stabilized Zero-Drift operational amplifiers.
Buck-Boost Regulator
Renesas Electronics ISL85403 Synchronous Buck/Boost Buck Converter
Synchronous buck or boost buck controller with a high-side MOSFET and low-side driver integrated.
Boost Converter
Renesas Electronics ISL9113 Synchronous Boost Converter
Low input voltage and high-efficiency synchronous boost converter with 1.3A switch.
Voltage Supervisor
Renesas Electronics ISL8801x 5 Ld Voltage Supervisors
Offers both fixed and adjustable voltage-monitoring and functions in a small 5 Ld SOT-23 package.
Battery Charger
Additional Application Solutions
See how Renesas complementary product portfolios of Analog + Power + Embedded Processing work together to deliver comprehensive solutions.
