Renesas Electronics Cloud Gateway Module
Renesas Electronics Cloud Gateway Module solution demonstrates an implementation of a cloud-connected gateway module that utilizes Renesas’ RA6M1 MCU with an Arm® Cortex®-M4 core. This system communicates with an external module through common interfaces (RS-485/RS-232). The 4G module can upload collected data to the cloud for further analysis. The power supply is designed to be flexible for either 12V or 24V inputs for wider adoption in systems.
Features
- Includes an Arm® Cortex®-M4 core running on 120MHz for outstanding performance, that integrates 512kB of flash memory and 256kB of SRAM
- High performance, low input voltage and high PSRR LDO
- Highly efficient, synchronous buck/boost regulator delivering up to 2.5A of continuous output current
- Robust communication interface with RS-485/RS-232

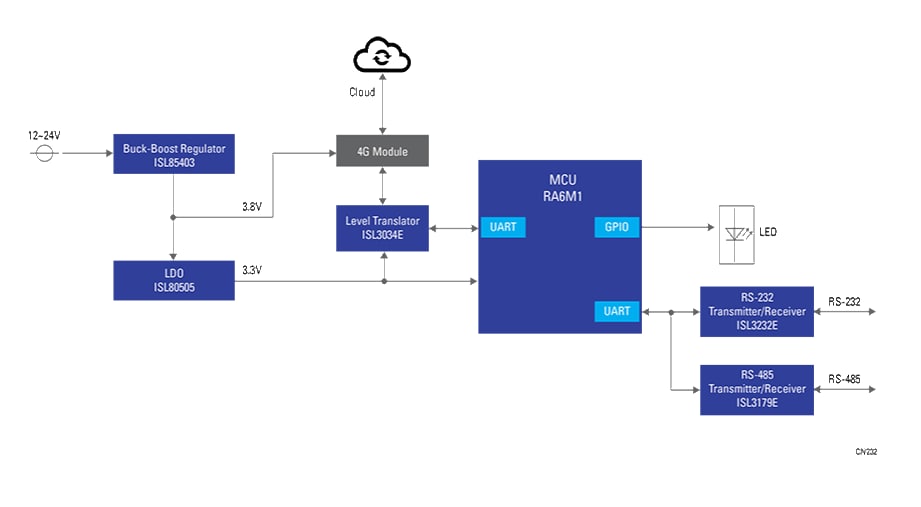

System Block Diagram
Featured Products
Renesas Electronics ISL85403 Synchronous Buck/Boost Buck Converter
Synchronous buck or boost buck controller with a high-side MOSFET and low-side driver integrated.
Renesas Electronics ISL80505 & ISL80510 LDO Voltage Regulators
Single output Low Dropout voltage regulators with a programmable 0.8V to 5.5V output voltage.
Renesas Electronics ISL3179E/ISL3180E RS-485/RS-422 Transceivers
3.3V, single transceivers that meet both the RS-485 and RS-422 standards for balanced communication.
Renesas Electronics ISL3232E/ISL4221E/ISL4223E RS-232 Interface ICs
2.7V-5.5V powered RS-232 transmitters/receivers that meet ElA/TIA-232 and V.28/V.24 specifications.
Renesas Electronics RA6M1 32-bitars mikrokontrollergrupp
Högpresterande 120 MHz ARM® Cortex®-M4F-kärna med en integrerad kapacitiv beröringssensorenhet.
Renesas Electronics ISL3034E Logic Level Translators
Auto-direction sensing that provides the required level shifting in multi-voltage systems.
