NXP Semiconductors i.MX RT1180 Evaluation Kit

NXP Semiconductors i.MX RT1180 Evaluation Kit (MIMXRT1180-EVK) provides a powerful, extendable platform to support most features of the i.MX RT1180 Crossover MCU. Arm^® Cortex^®-M7 and Arm Cortex-M33 cores power the i.MX RT1180 MCU. Five Ethernet ports are provided for Ethernet/TSN switch, endpoint, and EtherCAT applications. An Arduino UNO site is provided for expansion using NXP or third party shield boards. The board features a high-speed USB debug probe with an easy firmware update option to support MCU-Link.

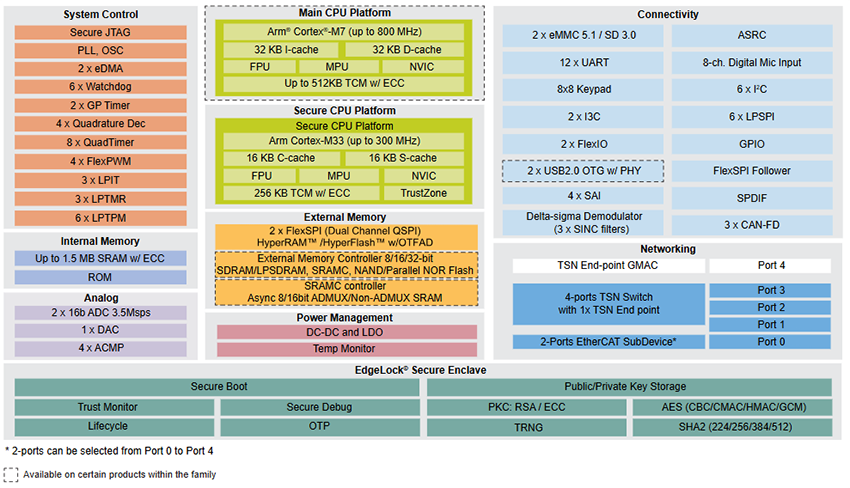

Features

MIMXRT1189CVM8C processor
- Arm Cortex-M7 core, operating up to 800MHz
- Arm Cortex-M33 core, operating up to 300MHz
Board memory
- 64Mbit HyperRAM memory
- 512Mbit SDRAM memory
- 512Mbit Octal Flash
- 128Mbit QSPI Flash
- 4Mbit LPSPI Flash
- Flash daughter card interface
- TF socket for SD card
Connectivity
- 3x Ethernet (10/100/1000M) connectors for TSN switch
- 2x Ethernet (10/100M) connectors for EtherCAT, TSN switch, and endpoint
- 2x Micro-USB OTG connectors
- M.2 connector
- 2x CAN transceivers
- ARDUINO interface
Gigabit Ethernet MAC interfaces
All-in-one board design

Audio
- Audio codec
- 8CH-DMIC extension
- 3.5mm audio headphone jack
- External speaker connection
- SPDIF connector
Debug capabilities
- JTAG connector
- Onboard MCU-Link debugger
Sensors
- 3-axis FXLS8974CFR3 MEMS accelerometer sensor for I²C
- LSM6DSOXTR 3D accelerometer and 3D gyroscope for I3C
- AMC1106M05DWV Delta-Sigma ADC Modulator for SINC
MCUXpresso software and tools
IAR Embedded Workbench^® IDE
Keil^® IDE

Applications

Industrial
- AC/servo drives
- Building and factory automation
- Industrial gateways
- IO-Link Master
- Metering
- Motion control and robotics
- Motor drives
- Network companions
- Programmable logic controllers
- Remote I/O
