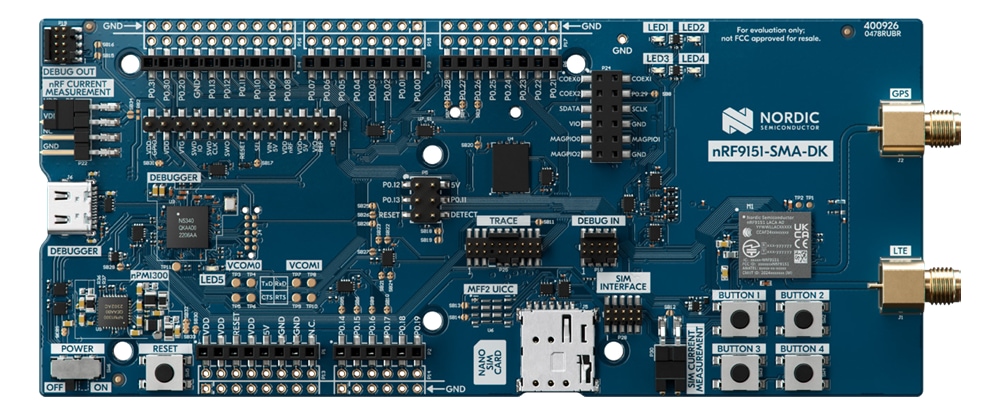

Nordic Semiconductor nRF9151 SMA Development Kit
Nordic Semiconductor nRF9151 SMA Development Kit is designed specifically for RF engineers and power users who require maximum performance and flexibility. The single-board development kit is based on the RF9151 SiP. The kit features SMA connectors for LTE-M/NB-IoT/NTN and GNSS, allowing direct connection to lab equipment for conducted measurements or high-performance external antennas for challenging field testing.
The Nordic Semiconductor nRF9151 SMA Development Kit is the recommended platform for developing and evaluating cutting-edge applications that utilize DECT NR+ and Non-Terrestrial Networks (NTN). A beta modem firmware is available that supplies support for NB-IoT NTN (satellite communication), permitting developers to begin evaluation immediately. The kit includes complete high-performance Taoglas (cellular/NTN) and Kyocera (GNSS) antennas and IoT SIMs from Deutsche Telekom, Onomondo, and Monogoto, delivering an unparalleled out-of-the-box experience for evaluating both terrestrial and satellite IoT connectivity.
Features
- SMA connectors for external antennas and direct connection to lab equipment
- The ideal platform for DECT NR+, Non-Terrestrial Network (NTN), and cellular IoT development/evaluation
- Includes high-performance Taoglas (LTE/ NTN/NR+) and Kyocera (GNSS) antennas
- Bundled with IoT SIM cards with trial data for immediate terrestrial and satellite connectivity
- SEGGER J-Link OB programmer/debugger
- Pins for measuring power consumption, e.g., with Nordic’s Power Profiler Kit II
- User-programmable LEDs and buttons
- 3.0V to 5.5V supply from external or 5V supply from USB
Applications
- Asset tracking
- Smart metering
- Smart city
- Smart agriculture
- Predictive maintenance
- Portable medical devices
- Industry 4.0
Associated SiPs
Nordic Semiconductor nRF9151 System-i-paket med låg strömförbrukning (SiP)
Erbjuder förbättrade strömalternativ för avancerade mobila IoT och DECT NR + -tillämpningar.
Dev Kit
Nordic Semiconductor nRF9151-DK utvecklingssats
Pre-certified single-board kit for evaluating nRF9151 SiP for LTE-M, NB-IoT, GNSS, and DECT NR+.
