Monolithic Power Systems (MPS) MPQ4467-AEC1 36V 2.5A Step-Down Converter

MPS MPQ4467-AEC1 36V 2.5A Asynchronous Step-Down Converter is frequency-programmable (350kHz to 2.5MHz) with an integrated internal high-side power MOSFET. In a QFN-16 package (3mm x 4mm), the converter provides a 2.5A highly efficient continuous output current with a current mode control for fast loop response. The wide 3.3V to 36V operating input range enables multiple automotive step-down applications. High-efficiency in light-load conditions is achieved through advanced asynchronous modulation (AAM) by scaling down the switching frequency to reduce the switching and gate driver losses.

Features

  • 3.3V to 36V operating input range
  • 2.5A continuous output current
  • 1μA low shutdown mode current
  • 10μA sleep mode quiescent current
  • Internal 90mΩ high-side MOSFET
  • 350kHz to 2.5MHz programmable switching frequency
  • Synchronize to external clock
  • Selectable in-phase or 180° out-of-phase
  • Power good indicator
  • Programmable soft-start time
  • 80ns minimum on time
  • Low dropout mode
  • Over-current protection (OCP) and hiccup mode
  • QFN-16 (3mmx4mm) package
  • AEC-Q100 Grade 1

Applications

  • Automotive systems
  • Industrial power systems
  • Battery-powered applications

Typical Application

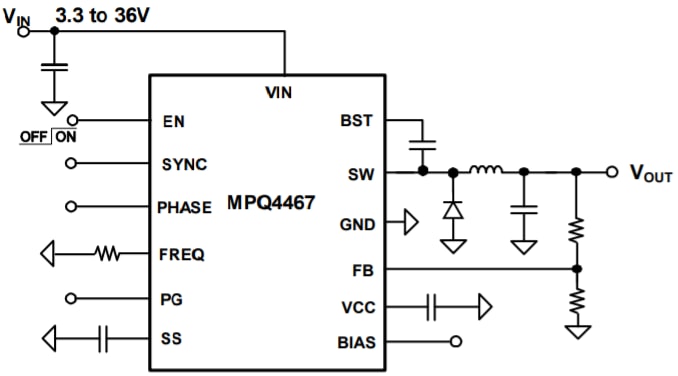

Application Circuit Diagram - Monolithic Power Systems (MPS) MPQ4467-AEC1 36V 2.5A Step-Down Converter

Efficiency vs. Load Current

Performance Graph - Monolithic Power Systems (MPS) MPQ4467-AEC1 36V 2.5A Step-Down Converter
