Microchip Technology PIC16F131xx Microcontrollers

Microchip Technology PIC16F131xx Microcontrollers feature a Configurable Logic Block (CLB) peripheral consisting of 32x logic elements, allowing for custom hardware logic integration. Each logic element offers extensive customization through a Look Up Table (LUT) based design, enhancing response time and reducing power consumption. Available in 8-, 14-, and 20-pin packages, the Microchip Technology PIC16F131xx offers up to 14KB of program Flash memory and up to 1KB of RAM. Additionally, the device includes a 10-bit Analog Digital Converter with Computation (ADCC) capable of up to 100kbps, an 8-bit Digital to Analog Converter, two fast Comparators (50ns response time), and other peripherals for timing control and serial communications with SMBus compatibility. With its compact size and core-independent peripherals, the PIC16F131xx family is suitable for real-time control, digital sensor nodes, and various industrial and automotive applications.

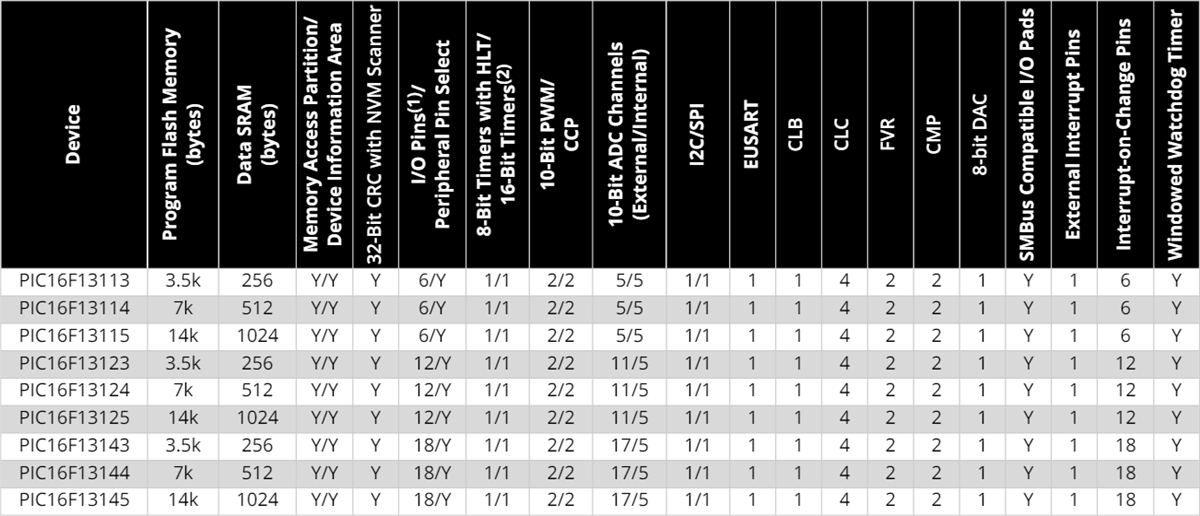

Features

32MHz PIC16 CPU core
Up to 14KB Flash program with independent control for code protection
Configurable boot memory and SAF area for storing data
Device Information Area (DIA) and Device Configuration Information (DCI)
Up to 1KB user SRAM
1x CLB module with 32x Basic Logic Elements (BLEs) and a built-in counter
32-bit Cyclic Redundancy Check (CRC) with a built-in memory scanner that can operate from the core independently
10-bit single-ended Analog-to-Digital Converter (ADC) with computation (300ksps) and channel grouping, which allows multiple, simultaneous input connections to the ADC

1x 8-bit programmable Digital-to-Analog Converter (DAC) with 2x buffered outputs
2x high-speed comparators
Fixed Voltage Reference (FVR)
Temperature sensor with factory calibration
High precision internal oscillator (±2% accuracy) with clock switching
Capabilities for external crystal oscillators and external clock
1x MSSP module that can be configured as SPI or I²C (up to 400KHz only)
1x EUSART with auto baud
3x timers (combination of 8- and 16-bit timers with hardware limit features)
