KYOCERA AVX 700E NPO Porcelain High RF Power Multilayer Caps

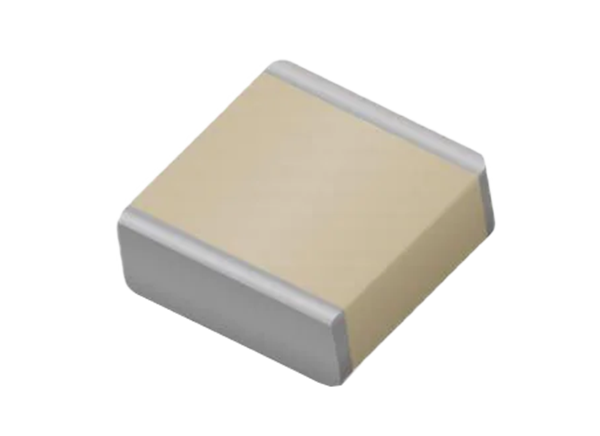

KYOCERA AVX 700E NPO Porcelain High RF Power Multilayer Capacitors are high Q multilayer capacitors that offer ultra-stable performance in high RF current and high voltage applications with NPO performance. High-density porcelain construction provides a rugged, hermetic package. The 700E NPO Porcelain High RF Power Multilayer Capacitors offer capacitance options from 1pF to 2200pF with a -55°C to +125°C operating temperature range. An encapsulated option is also available for applications requiring extended protection against arc-over and corona.

Features

  • Case E Size, 0.380” x 0.380”
  • Extended WVDC up to 7200VDC
  • Low ESR/ESL
  • High Q
  • High RF power
  • Ultra-stable performance
  • High RF current/voltage
  • Encapsulated option available, leaded styles only
  • RoHS compliant

Applications

  • Circuit
    • HF/RF power amplifiers
    • Transmitters
    • Antenna tuning
    • Plasma chambers
    • Medical (MRI coils)
  • Bypass
  • Coupling
  • Tuning
  • Impedance matching
  • DC blocking

Specifications

  • 1pF to 2200pF capacitance range
  • 500VDC to 7.2kVDC voltage range
  • -55°C to +125°C operating temperature range
  • ±30PPM/°C temperature coefficient
  • Horizontal or vertical electrode orientation

View All

NPO High RF Power Multilayer Capacitors

KYOCERA AVX NPO High RF Power Multilayer Capacitors

designed for high RF power applications requiring consistent and reliable operation.

Learn Moreom KYOCERA AVX NPO High RF Power Multilayer Capacitors View Productsrelaterat till KYOCERA AVX NPO High RF Power Multilayer Capacitors
