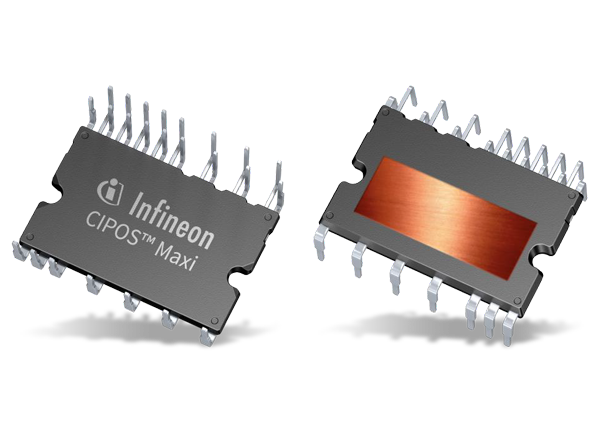

Infineon Technologies CIPOS™ Maxi integrates various power and control components to increase reliability, and optimize PCB size and system costs. These devices are designed to control three-phase AC motors and permanent magnet motors in variable speed drive applications. These applications include low-power motor drives (GPI, Servo drives), pumps, fan drives, and active filters for HVAC. The CIPOS™ Maxi are specially adapted to power applications, which need good thermal performance and electrical isolation, EMI-save control, and overload protection. Three-phase inverter with 1200V TRENCHSTOP™ IGBTs and Emitter Controlled diodes are combined with an optimized 6-channel SOI gate driver for excellent electrical performance.
Fully isolated Dual In-Line molded module
1200V TRENCHSTOP™ IGBT4
Rugged 1200V SOI gate driver technology with stability against transient and negative voltage
Allowable negative VS potential up to -11V for signal transmission at VBS = 15V
Integrated bootstrap functionality
Over current shutdown
Built-in NTC thermistor for temperature monitor
Under-voltage lockout at all channels
Low side emitter pins accessible for all phase current monitoring (open emitter)
All 6 switches turn off during protection
Programmable fault clear timing and enable input
Lead-free terminal plating; RoHS compliant
Fan drives and active filter for HVAC, pumps, and low power motor drives (GPI, Servo Drives)
Infineon Technologies CIPOS™ Intelligent Power Modules
A portfolio of highly integrated, compact power modules designed to drive motors.
