FRAMOS FPA-A/NDK-Kit Processor Adapter Kit

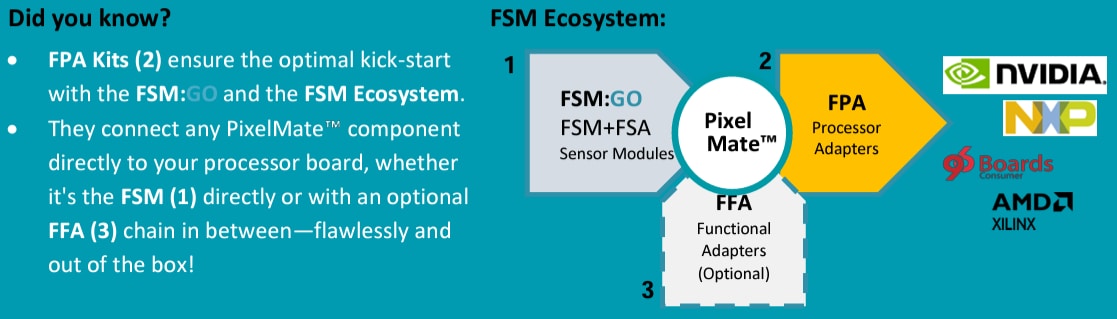

FRAMOS FPA-A/NDK-Kit Processor Adapter Kit includes all components required to connect a FRAMOS Sensor Module (FSM:GO, FSM:FSA) either directly or via an FFA Kit. FPA-A/NDK-Kit is compatible with the i.MX8M Plus Developer Kit and other NXP platforms that utilize the 36-pin IPASS cabling. Full support is provided for all FSM:GO Sensor Modules on the NXP i.MX8M Plus Developer Board, offering reference implementations of MIPI CSI-2 (D-PHY) drivers and example ISP configurations. The software package enables embedded software engineers to access the communication and streaming systems, ensuring optimal image capture in memory. All sensor drivers and device tree overlays are open source, allowing customization and extension to meet the specific requirements of any application.

Features

Includes everything needed to connect one FSM:GO or FSM+FSA to the official NXP Developer Kits
Versatile compatibility
Includes adapter, cabling, and mounting material to connect one sensor module
Enhanced signal management

Supports four lanes of MIPI CSI-2
External access to synchronization, timing, and other sensor signals via test points
Flexible interfaces
Dynamic configuration
Robust design

Applications

Embedded vision systems
Artificial intelligence and machine learning

Industrial automation
Robotics and drones

Kit Contents

FPA-A/NDK-V1 - FPA for single sensor the official NXP i.MX8M Plus developer kit
FMA-CBL-IPASS-230/36-V1 - IPASS cable (36-pin) to connect FPA-A/NDK-V1 to NXP developer kits, 230mm

FMA-FC-150/60-V1 - Flex cable 150mm for PixelMate™ MIPI CSI-2, optional use
FMA-SCW/01-KIT - Screws/spacers for direct stacking of two FSM/FFA (four mounting holes)
