Diodes Incorporated DMS2085LSD MOSFET w/ Integrated Schottky Diode

Diodes Inc. DMS2085LSD P-Channel MOSFET with Integrated Schottky Diode has been designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance. The DMS2085LSD is ideal for high efficiency power management applications. Typical applications are DC-DC converters, power management functions and backlighting.

Features

  • Low input capacitance
  • MOSFET with Low RDS(ON) - minimize conduction losses
  • Schottky diode with low forward voltage drop
  • Fast switching speed
  • Totally lead-free & fully RoHS compliant
  • Halogen and antimony free "Green" device
  • Qualified to AEC-Q101 standards for high reliability

Specifications

  • SO-8 Case
  • UL Flammability classification rating 94V-0
  • Level 1 per J-STD-020 moisture sensitivity
  • Finish – matte tin annealed over copper leadframe terminals
  • Solderable per MIL-STD-202, method 208
  • 0.074 grams (approximate)

Applications

  • C-DC Converters
  • Power management functions
  • Backlighting

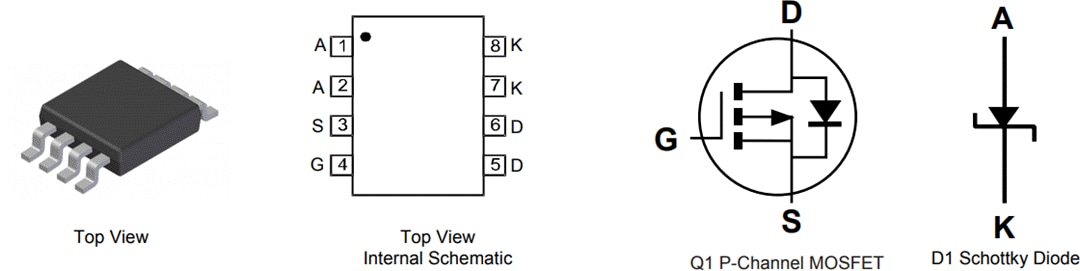

Package Outline

Mechanical Drawing - Diodes Incorporated DMS2085LSD MOSFET w/ Integrated Schottky Diode
