CUI Inc VOF-80B Switching Power Supplies

CUI Inc VOF-80B Switching Power Supplies are internal AC-DC power supplies designed to meet IEC/EN 60335-1 and EN 55032. These power supplies have high efficiency of up to 91% and are certified to EN/BS EN/UL 62368-1. The VOF-80B switching power supplies feature chassis mounting style and regulated load regulation. These power supplies feature continuous short-circuit protection, a 5,000m operating altitude, and a 2-inch x 3-inch open frame compact size. The VOF-80B switching power supplies operate at -30°C to 80°C temperature range and 90VAC to 264VAC universal input voltage range.

Features

  • High efficiency up to 91%
  • 2-inch x 3-inch open frame compact size
  • Class I and Class II
  • RoHS compliant
  • Continuous short circuit protection
  • Certified to EN/BS EN/UL 62368-1
  • Designed to meet IEC/EN 60335-1 and EN 55032

Specifications

  • -30°C to 80°C operating temperature range
  • 3kVAC isolation voltage
  • 50Hz to 60Hz input frequency range
  • 90VAC to 264VAC universal input voltage range
  • 80W maximum output power
  • Up to 6.7A output current channel 1

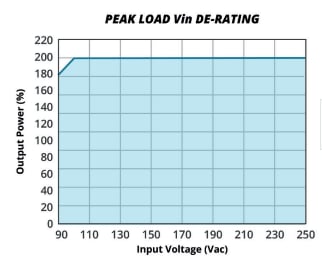

Derating Curve

Performance Graph - CUI Inc VOF-80B Switching Power Supplies
