CUI Inc SDM100G External AC-DC Power Supplies
CUI Inc SDM100G External AC-DC Power Supplies are 100W AC‑DC desktop power supplies designed for medical-grade applications with USB Type‑C® power delivery capability. These power supplies utilize advanced GaN technology to deliver high-efficiency and compact performance, supporting multiple output voltages. The SDM100G power supplies are UL/cUL / TUV / FCC / CE 60601 certified and provide 2 MOPP isolation, making them suitable for healthcare equipment. These AC-DC power supplies are available in class II (C8 AC inlet, SDM100G-D) and class I (C14 AC inlet, SDM100G-U) versions. The SDM100G series supports customization options and meets global EMC and efficiency standards, ensuring reliable performance across a wide range of applications. The SDM100G AC-DC power supplies are ideal for medical, healthcare, and other safety-critical equipment using USB-C PD input power.
Features
- -20°C to 40°C operating temperature range
- Variable output - 5V, 9V, 12V, 15V at 3A or 20V at 5A
- Certified UL/cUL / TUV / FCC / CE 60601
- 2 MOPP compliant
- Customization available
- 136mm x 68mm x 25.4mm dimensions
- RoHS compliant
Applications
- Medical
- Healthcare
- Safety-critical equipment
Related Products
CUI Inc SDI100 AC-DC Power Supplies
Features USB-C Type-C DC connector and 90VAC to 264VAC universal input.

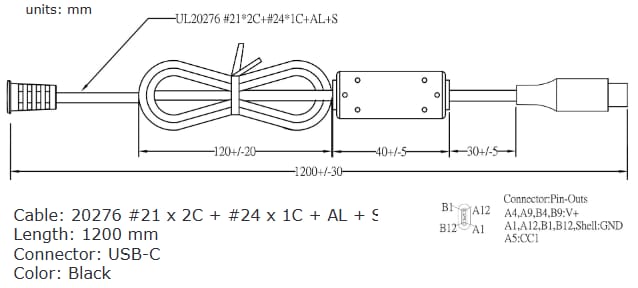

Mechanical Drawing
DC CORD
AC CORD
