Bourns 1130 Series High-Current Chokes
Bourns 1130 Series High-Current Chokes provide a very high current capacity (1A to 21A) and low DC resistance (DCR). The 1130 series features an epoxy-coated ferrite bobbin core and VW-1-rated heat shrink tubing to cover winding. These Bourns chokes have a dielectric withstanding voltage of 2500VRMS from the terminal to the shrink tube cover and 1000VRMS from the terminal to the core.
Features
- Very high current capacity
- Low DCR
- Epoxy-coated ferrite bobbin core
- VW-1-rated shrink tubing to cover winding
- Self-leaded
- Fixed lead spacing
- Center hole for mechanical mounting
- Dielectric withstanding voltage
- 2500VRMS terminal to shrink tube cover
- 1000VRMS terminal to core
- -55°C to +105°C operating temperature range
Applications
- Power supply filtering
- DC/DC converters
- Noise suppression
- General high-current applications
Specifications
- 28mm diameter x 21.3mm height
- 1µH to 4700µH inductance range
- 1A to 21A current range
- RoHS compliant

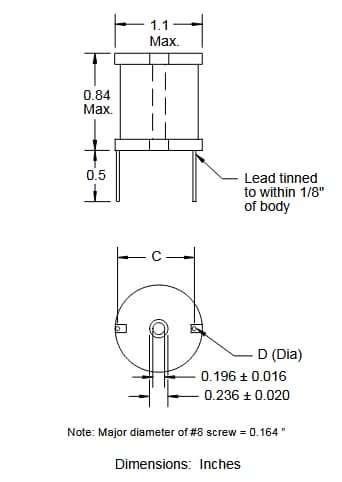

Dimensions
