Analog Devices Inc. EVAL-LTC9111-AZ Evaluation Board
Analog Devices EVAL-LTC9111-AZ Evaluation Board features the LTC9111, an IEEE 802.3cg-compliant single pair power over Ethernet (SPoE) powered device (PD) controller. With the LTC9111's wide operating range of 2.3V to 60V, the EVAL-LTC9111-AZ may be configured with class jumpers to IEEE 802.3cg 24V power classes (Class 10 to Class 12) or 52V power classes (Class 13 to Class 15).
The Analog Devices EVAL-LTC9111-AZ motherboard headers (J1, J2, and J3) connect to SPoE shields, the EVAL-10BT1L-MCS-AZ (Class 10 to Class 14) or the EVAL-10BT1L-MCS-BZ (Class 15). The EVALLTC9111-AZ motherboard with a shield connects via a single pair Ethernet (SPE) cable to an IEEE 802.3cg SPoE power sourcing equipment (PSE) for power. The EVAL-LTC9111-AZ incorporates both IEEE 802.3cg-compliant wakeup signature and SCCP-based classification.
Features
- IEEE 802.3cg-compliant SPoE PD
- Supports serial communication classification protocol (SCCP)
Applications
- Building automation
- Factory automation
- Security systems
- Traffic control systems
Additional Resources

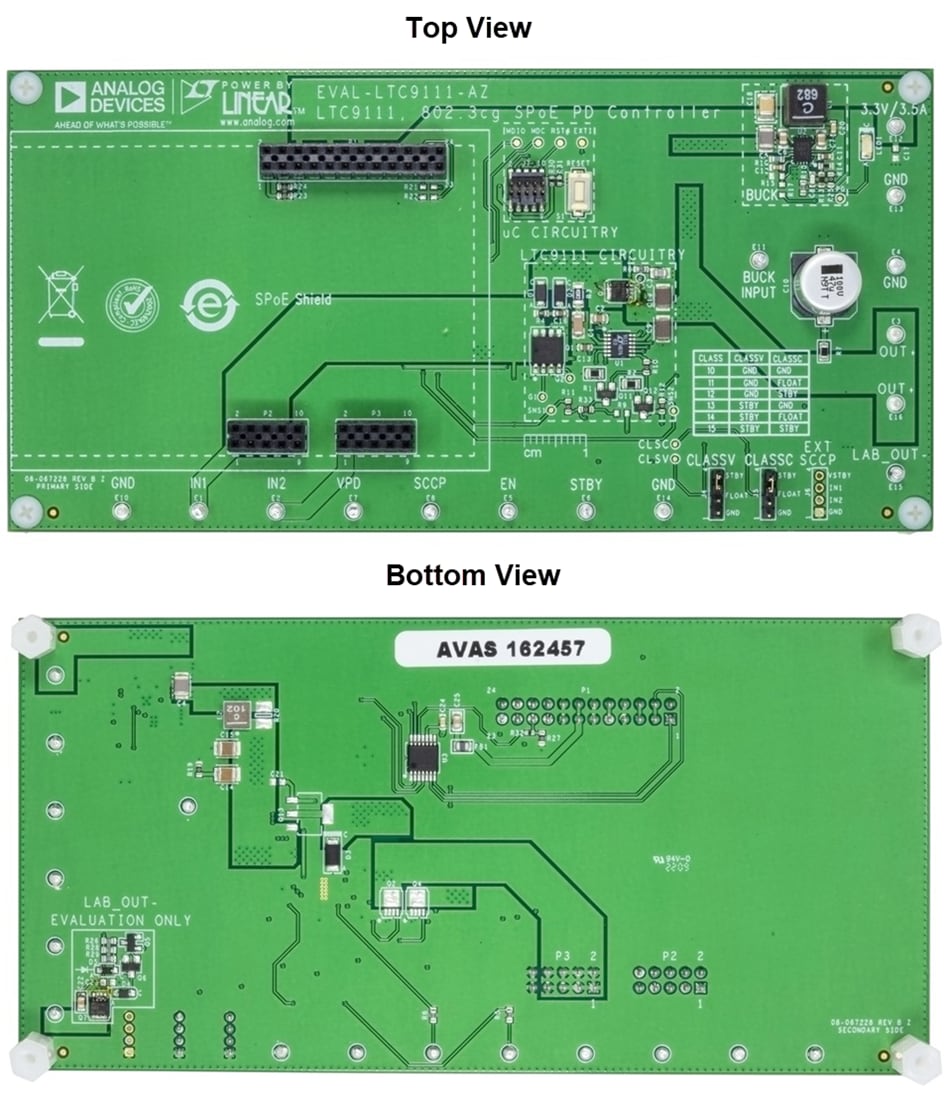

Board Layout
Related SPoE PD Controllers
Analog Devices Inc. LTC9111 Industrial SPoE PD Controllers
Offer IEEE 802.3cg compliance, wide 2.3V to 60V operating range capability, and polarity correction.
Development Tools
Analog Devices Inc. EVAL-10BT1L-MCS IEEE 802.3cg SPoE Shields
Compatible with SPoE power sourcing equipment (PSE) and powered device (PD) evaluation motherboards.
