Analog Devices Inc. EVAL-ADL6332 Evaluation Board
Analog Devices EVAL-ADL6332 Evaluation Board permits the manual control of the ADL6332 via the USB port on a Microsoft® Windows® PC through an SDP-S interface board. The ADI EVAL-ADL6332 Board provides a single-supply operation and easy-to-use interface with Analysis | Control | Evaluation (ACE) software.
Features
- Full featured evaluation board for the ADL6332-EVALZA
- Single-supply operation
- Easy-to-use interface with Analysis | Control | Evaluation (ACE) software
Required Equipment
- 3.3V DC power supply
- EVAL-SDP-CS1Z (SDP-S)
- Signal generator
- Spectrum analyzer
- Network analyzer (optional)
- Microsoft Windows PC with a USB port
- ACE software
- ACE ADL6332 plugin software
Associated Board
Analog Devices Inc. SDP-S Controller Board (EVAL-SDP-CS1Z)
Allows for configuration and capture of data on daughter boards from the PC via USB.

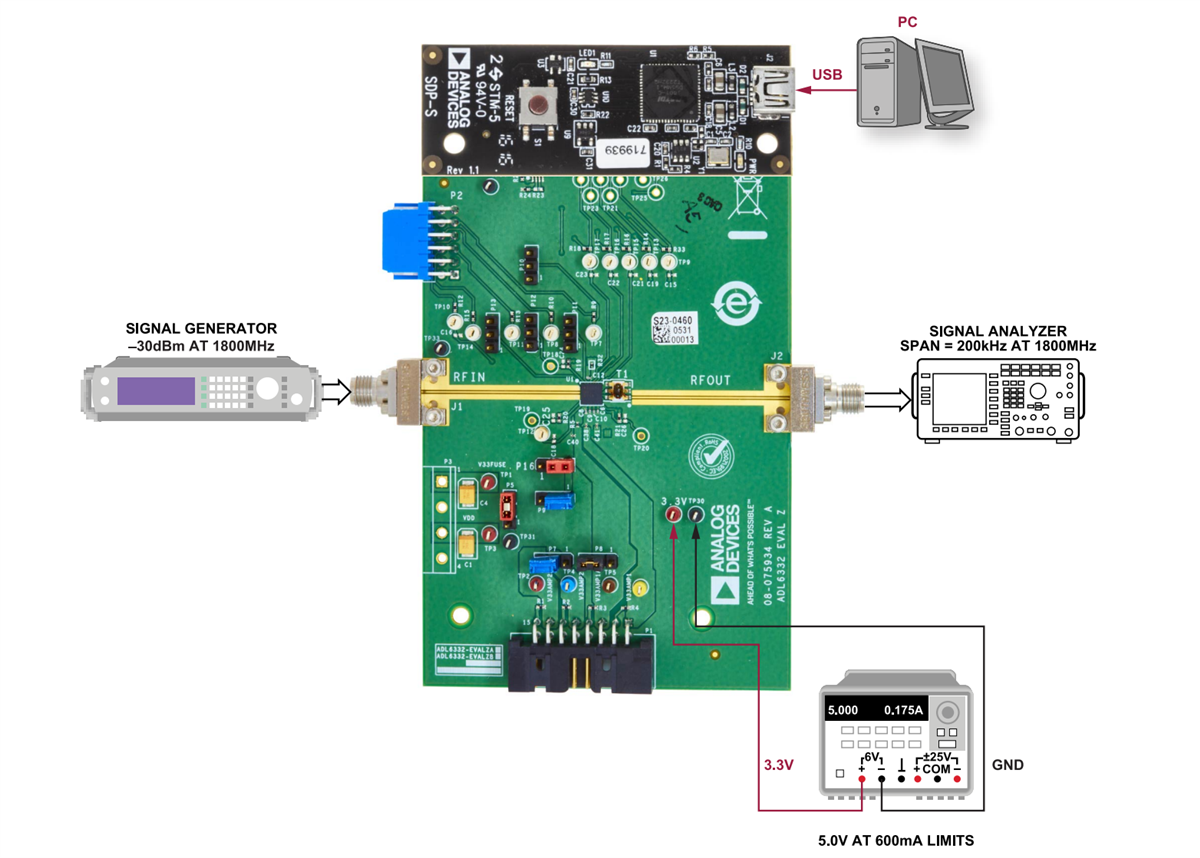

Typical Measurement Setup
