Analog Devices Inc. EVAL-AD4692-ARDZ ADC Evaluation Board
Analog Devices EVAL-AD4692-ARDZ ADC Evaluation Board is designed to demonstrate the performance of the AD4692 family of analog-to-digital converters (ADCs) and to provide access to the included configuration options available in the ACE plugin graphical user interface (GUI). The AD4692 family is a compact, high-accuracy, 16-bit Easy Drive successive-approximation register (SAR) ADC optimized for high-density multichannel precision data-acquisition solutions.
The SDP-K1 is the primary controller board for the EVAL-AD4692-ARDZ. The EVAL-AD4692-ARDZ evaluation board conforms to the Arduino® Uno Shield mechanical and electrical standards, enabling it to interface with the SDP-K1 and various software development kits from other manufacturers.
The EVAL-AD4692-ARDZ evaluation solution includes the AD4692 industrial I/O (IIO) firmware application drivers for device configuration and ADC data capture, and the AD4692 ACE plugin GUI for performance evaluation. The Analog Devices EVAL-AD4692-ARDZ can also be used to evaluate the performance of the AD4691, AD4693, and AD4694 by limiting the sample rate and number of channels used in the evaluation software.
Features
- Full-featured evaluation board for the AD4692 family of multiplexed SAR ADCs
- Demonstrates performance and functionality of the AD4691, AD4692, AD4693, and AD4694
- Two single-ended input channels available through SMA connectors for AC analysis
- Six channels for onboard DC voltage analysis
- Onboard reference circuitry and power tree designed for a USB power solution
- ACE plugin available for device configuration and data analysis in the time and frequency domains
- Compatible with SDP-K1 and other Arduino-form-factor controller boards
Applications
- Optical power monitoring
- Medical instrumentation
- Electronic test and measurement
- Automated test equipment
- Battery-powered equipment
Required Equipment
- PC with Windows 10 or later operating system
- SDP-K1 controller board and accompanying USB cable
- Precision signal generator with SMA output cables
- Analysis | Control | Evaluation (ACE) software
- AD4692 ACE plugin from the plugin manager or the ACE plugin database

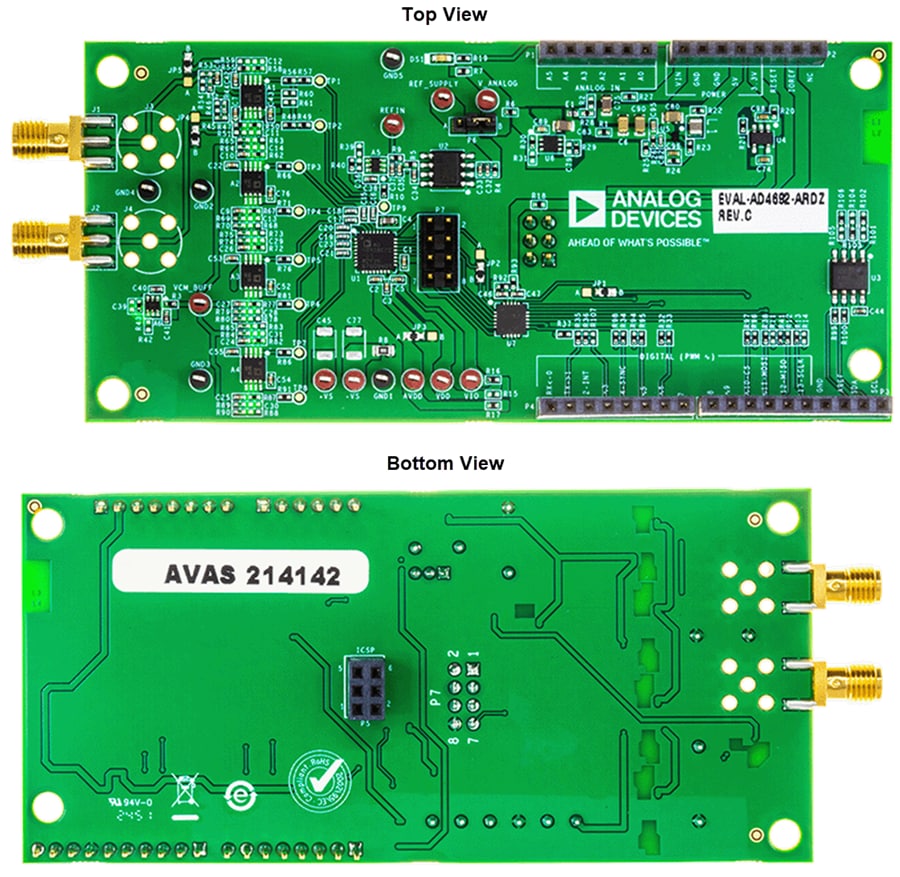

Board Layout
Related Multiplexed SAR ADCs
Analog Devices Inc. AD4691/AD4692 Easy Drive Multiplexed SAR ADCs
16-bit SAR ADCs optimized for high-density, multichannel precision data-acquisition solutions.
