Analog Devices Inc. ADRF5048-EVALZ Evaluation Board
Analog Devices Inc. ADRF5048-EVALZ Evaluation Board is designed to evaluate the features and performance of the ADRF5048. The ADRF5048 is an SP4T, non-reflective switch manufactured in the silicon process. The Analog Devices Inc. ADRF5048-EVALZ is a connectorized board assembled with the ADRF5048 and its application circuitry. All components are placed on the primary side of ADRF5048-EVALZ.
Features
- Full-featured evaluation board for the ADRF5048
- Simple connection to test equipment
- Thru line for calibration
Required Equipment
- DC power supplies
- Network analyzer

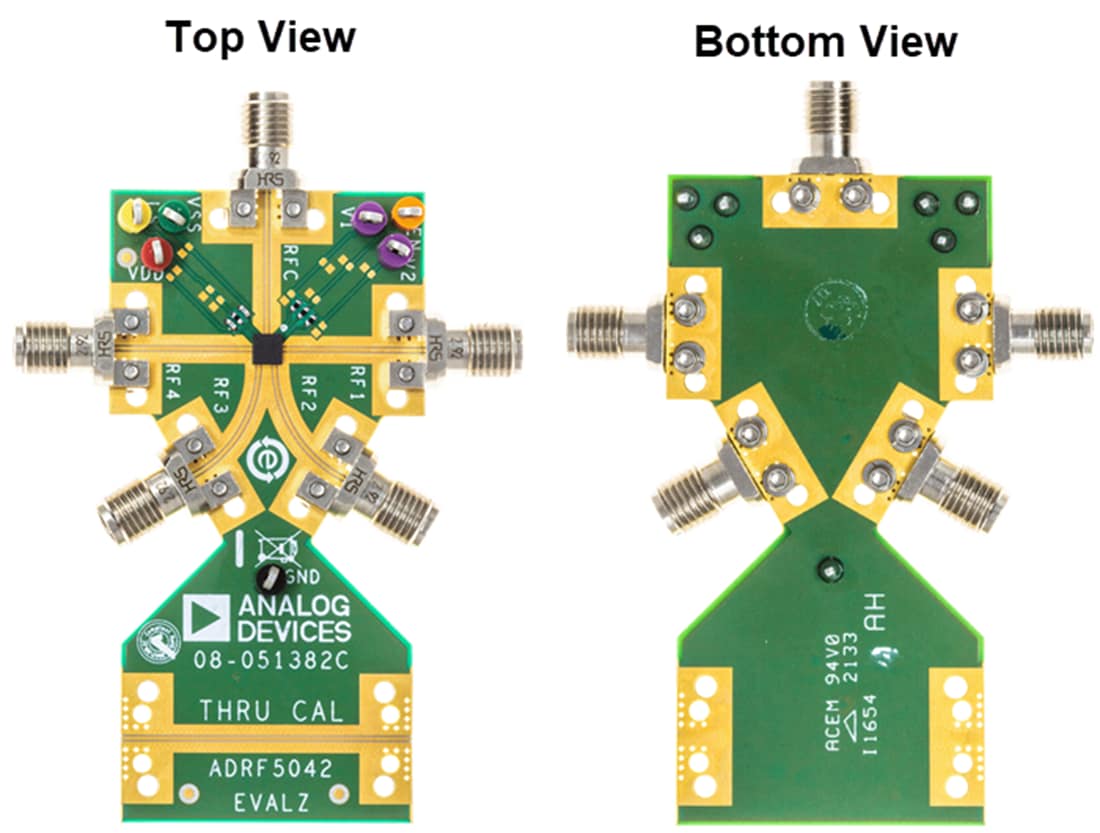

Board Layout
Related Product
Analog Devices Inc. ADRF5048 Non-Reflective SP4T Switch
A non-reflective SP4T switch manufactured in the silicon-on-insulator (SOI) process.
