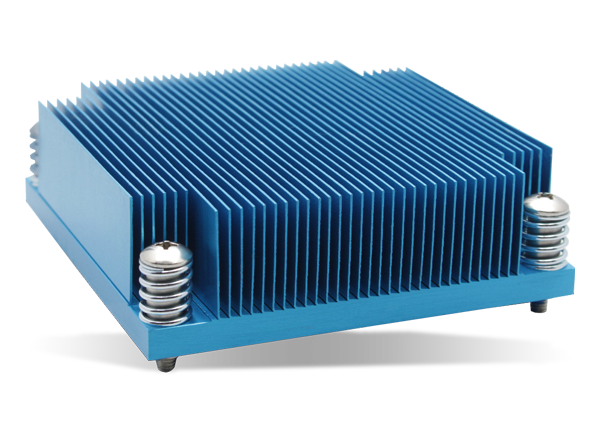

Advanced Thermal Solutions High-Performance Passive Coolers

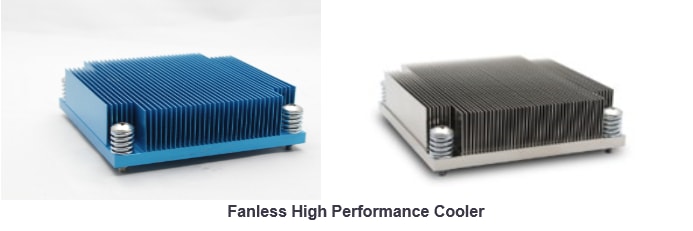

Advanced Thermal Solutions High-Performance Passive Coolers are designed for CPUs and other high-powered processors that fit the Intel™ LGA2011 square and LGA2066 sockets (Socket R). These straightFlN heat sinks feature optimized fin designs to cover a wide range of requirements as well as an optional standard backing plate to accommodate the cooling of any high-powered device. ATS High-Performance Passive Coolers promote a true 1U design, making them ideal for 1U systems with open airflow front to back. These coolers are available in a blue anodized finish with aluminum fins to reduce weight or in a nickel-plated finish with copper fins to reduce spreading resistance.

Features

Designed for CPUs that fit the Intel LGA2011 square and LGA2066 sockets (Socker R)
Four models with optimized fin designs to cover wide range of requirements
Installed hardware provides up to 9.2PSI pressure
True 1U design

Mechanical attachment is PEM, screws, and spring
Provided with Chomerics T670 thermal grease
Optional standard backing plate to accommodate cooling of any high-powered device
