ST5-50-1.50-L-D-P-TR

Name: Samtec ST5-50-1.50-L-D-P-TR
Brand: Samtec
SKU: 200-ST5501.50LDPTR
Price: 46.87 SEK
Availability: InStock

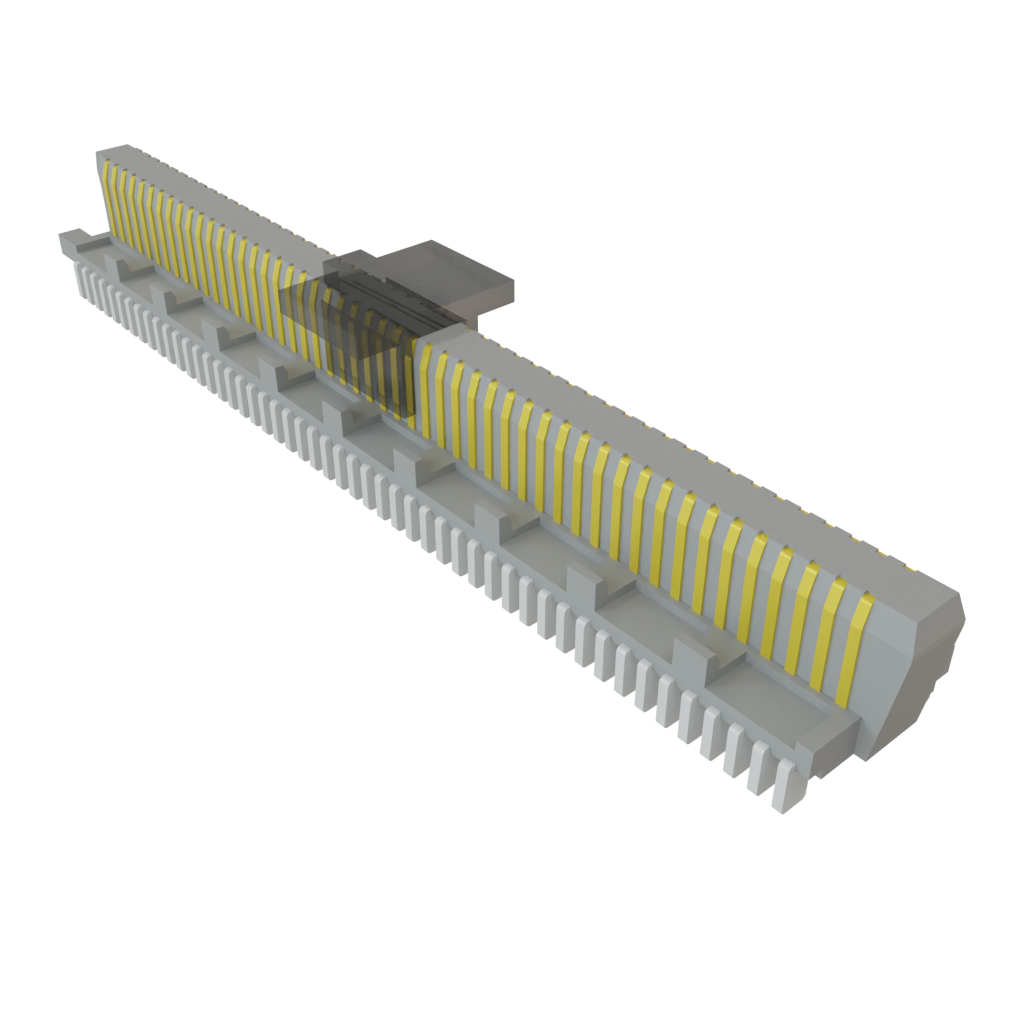

Bilder är endast för referens
Se produktspecifikationer

Mouser nr:

200-ST5501.50LDPTR

Tillverk: Nr.:

ST5-50-1.50-L-D-P-TR

Tillverk:

Samtec

Beskrivning:

Kort till kort och mezzanine-anslutare 0.50 mm Micro Blade & Beam Low-Profile Header

Datablad:

ST5-50-1.50-L-D-P-TR Datablad (PDF)

ECAD-modell:

Ladda ned den kostnadsfria Libary Loader för att omvandla denna fil för ditt ECAD-verktyg. Läs mer om ECAD-modellen.

Mer information

Lär dig mer om Samtec ST5-50-1.50-L-D-P-TR

På lager: 844

Lager:: 844 Kan skickas omedelbart

Ett oväntat fel har inträffat. Försök igen senare.
Fabrikens ledtid:: 3 Veckor Uppskattad tillverkningstid i fabriken för kvantiteter som är större än vad som visas.

Ange kvantitet:

Minst: 1 Flera: 1

Enhetspris:

-,-- kr

Ext. pris:

-,-- kr

Est. Pris:

Prissättning (SEK)

Antal	Enhetspris	Ext. pris
	46,87 kr	46,87 kr
	41,53 kr	2.076,50 kr
	38,91 kr	3.891,00 kr
	35,10 kr	8.775,00 kr
Komplett Papprulle (beställ i multiplar av 825)
	30,96 kr	25.542,00 kr
	29,87 kr	73.928,25 kr

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Produktattribut	Attributvärde	Välj attribut
Tillverkare:	Samtec
Produktkategori:	Kort till kort och mezzanine-anslutare
RoHS-direktivet:
Produkt:	Headers
Antal positioner:	100 Position
Delning:	0.5 mm (0.02 in)
Antal rader:	2 Row
Termineringsstil:	Solder
Monteringsvinkel:	Vertical
Stapelhöjd:	4.5 mm, 5 mm
Märkström:	1.6 A
Märkspänning:	200 VAC
Maximal datahastighet:	56 Gbps
Minsta drifttemperatur:	- 55 C
Maximal drifttemperatur:	+ 125 C
Kontaktplätering:	Gold
Kontaktmaterial:	Phosphor Bronze
Höljets material:	Liquid Crystal Polymer (LCP)
Serie:	ST5
Förpackning:	Reel
Förpackning:	Cut Tape
Applikation:	Power, Signal
Märke:	Samtec
Datahastighet:	56 Gbps
Brännbarhetsklass:	UL 94 V-0
Monteringsstil:	SMD/SMT
Produkttyp:	Board to Board & Mezzanine Connectors
Fabriksförpackningskvantitet:	825
Underkategori:	Board to Board & Mezzanine Connectors
Handelsnamn:	Razor Beam LP
Enhetens vikt:	155 mg

Hittade produkter:

Markera minst en kryssruta för att visa liknande produkter

Markera minst en kryssruta ovan för att visa liknande produkter i denna kategori.

Attribut som valts: 0

Filtrera dokument:

Datablad

ST5-50-1.50-L-D-P-TR Datablad (PDF)

Images


Specification Sheets

Technical Resources

Test Report (PDF)

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Ultra Micro Interconnects

Samtec Ultra Micro Interconnects offer a stack height as low as 2.31mm and pitches of 0.4mm, 0.5mm, 0.635mm, and 0.8mm. One to four rows are available, and termination styles include solder, solder balls, and solder pin. Samtec Ultra Micro Interconnects are available in several mounting angles, including horizontal, right, straight, and vertical. The product lineup features connectors, headers, receptacles, sockets, and hermaphroditic connectors.

SS5/ST5 0.50mm Ultra-Fine-Pitch Connectors

Samtec SS5 / ST5 0.50mm Ultra-Fine-Pitch Connectors provide up to 56Gbps PAM4 performance and are designed for board-to-board connections where space is at a premium. The slim body connectors are manufactured on an ultra-fine 0.50mm pitch and feature up to 160 I/Os with mated stack heights as low as 4mm. These Razor Beam™ LP family sockets and headers are engineered to save space on the X, Y, and Z axes. Samtec SS5 / ST5 0.50mm Ultra-Fine-Pitch Connectors are available in a straight or vertical configuration, and the SS5 sockets are designed to mate with the ST5 headers and vice-versa. Both series operate in a -55°C to +125°C temperature range. Ideal applications include 5G networking, artificial intelligence (AI) and machine learning, military / aerospace, medical, automotive, and more.

Ultra-Micro Connector Solutions

Samtec Ultra-Micro Connector Solutions feature Razor Beam™ LP ultra-micro blade and beam fine-pitch connectors available on 0.40mm and 0.50mm pitches with stack heights as low as 2mm. These connectors are ideal for small and fast applications, offering speeds up to 56Gbps PAM4 (SS5/ST5). The connectors feature a slim body design and are engineered to save space on the X, Y, and Z axes. Samtec Ultra-Micro Connector Solutions products can be utilized at both the component level and system level to ensure full system optimization. Applications include 5G networking, military/aerospace, medical, artificial intelligence (AI), machine learning, instrumentation, and more.

Flexible Stacking Connectors

Samtec Flex Stacking Board Connectors feature a large variety of board-to-board connectors with design flexibility. These Samtec board-to-board connector systems are available in a variety of pitches, densities, stack heights, orientations, and other standard or modified options, making it easy to find the right connector for any application. Flex-Stack options include one-piece, low profile pass-through, elevated, hermaphroditic, shrouded, coplanar, parallel, and perpendicular. Post heights are adjustable in increments of 0.005” (0.13mm).
